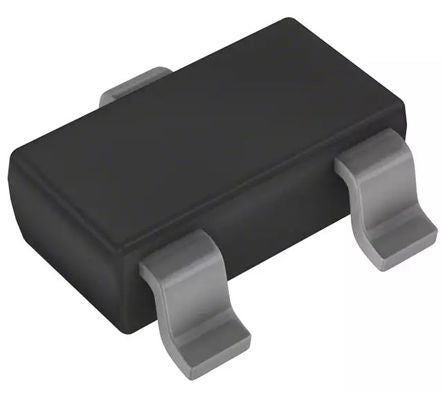

ROHM, 38V Zener Diode ±5% 250 mW SMT 3-Pin SOT-23 [BZX84C36VLT116]; 148-5730
by ROHM
0₫
Mã kho: 1485730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 38V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Package Type | SOT-23 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 3 |
| Test Current | 2mA |
| Maximum Zener Impedance | 90Ω |
| Maximum Reverse Leakage Current | 100nA |
| Length | 3.1mm |
| Width | 1.5mm |
| Dimensions | 3.1 x 1.5 x 1.15mm |
| Typical Voltage Temperature Coefficient | 34 (Maximum)mV/°C |
| Height | 1.15mm |
| Power Dissipation | 250mW |
| Maximum Operating Temperature | +150 °C |
