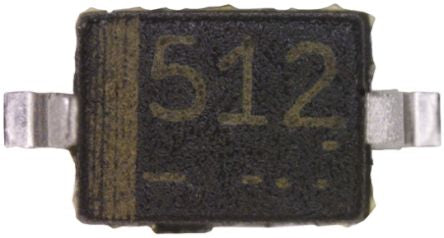

Renesas, 12V Zener Diode 200 mW SMT 2-Pin Super MiniMold [RD12S-A]; 188-078
0₫
Mã kho: 188078
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 12V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 200 mW |
| Package Type | Super MiniMold |
| Zener Type | General Purpose |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 35Ω |
| Maximum Reverse Leakage Current | 2µA |
| Length | 1.7mm |
| Width | 1.25mm |
| Dimensions | 1.7 x 1.25 x 0.9mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
