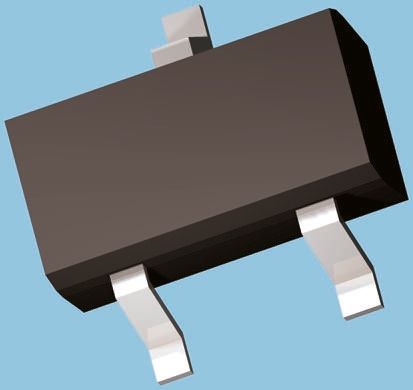

Panasonic Dual, 6.8V Zener Diode, Common Anode 5% 200 mW SMT 3-Pin Mini3 G3 B [DZ3X068D0L]; 712-5945
by Panasonic
0₫
Mã kho: 7125945
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Anode |
Nominal Zener Voltage | 6.8V |
Mounting Type | Surface Mount |
Number of Elements per Chip | 2 |
Maximum Power Dissipation | 200 mW |
Package Type | Mini3 G3 B |
Zener Type | Transient Suppressor |
Zener Voltage Tolerance | 0.05 |
Pin Count | 3 |
Test Current | 5mA |
Maximum Zener Impedance | 60Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 2.9mm |
Width | 1.5mm |
Dimensions | 2.9 x 1.5 x 1.1mm |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
Typical Voltage Temperature Coefficient | 3.1mV/°C |
