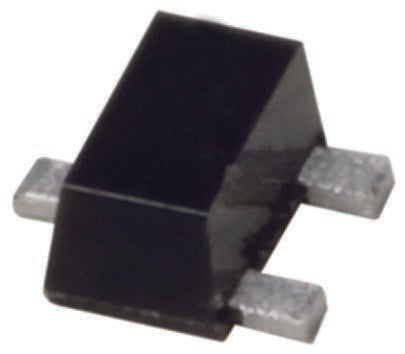

![Panasonic DZ3S068D0L 1683679](http://nguyenxuong.com/cdn/shop/products/L518138-01_4ac0b5d5-aff6-4a20-9d36-96c050bf8eb2_405x354.jpg?v=1594210929)
Panasonic Dual, 6.8V Zener Diode, Common Anode 5% 150 mW SMT 3-Pin SSMini3 F3 B [DZ3S068D0L]; 168-3679
by Panasonic
0₫
Mã kho: 1683679
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Anode |
Nominal Zener Voltage | 6.8V |
Mounting Type | Surface Mount |
Number of Elements per Chip | 2 |
Maximum Power Dissipation | 150 mW |
Package Type | SSMini3 F3 B |
Zener Type | Transient Suppressor |
Zener Voltage Tolerance | 0.05 |
Pin Count | 3 |
Test Current | 5mA |
Maximum Zener Impedance | 60Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 1.6mm |
Width | 0.85mm |
Dimensions | 1.6 x 0.85 x 0.6mm |
Typical Voltage Temperature Coefficient | 3.1mV/°C |
Maximum Operating Temperature | +150 °C |
Height | 0.6mm |
