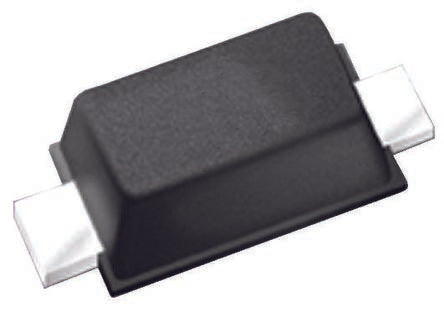

Panasonic, 30V Zener Diode 2.5% 150 mW SMT 2-Pin SSMini2 F5 B [DZ2S300M0L]; 713-2873
by Panasonic
0₫
Mã kho: 7132873
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 30V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 150 mW |
| Package Type | SSMini2 F5 B |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.025 |
| Pin Count | 2 |
| Test Current | 2mA |
| Maximum Zener Impedance | 160Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.2mm |
| Width | 0.8mm |
| Dimensions | 1.2 x 0.8 x 0.6mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.6mm |
| Typical Voltage Temperature Coefficient | 28.7mV/°C |
