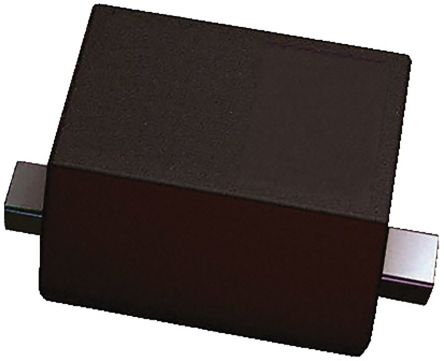

ON Semiconductor, 16V Zener Diode 5% 500 mW SMT 2-Pin SOD-523 [SZMM5Z16VT1G]; 805-4547
0₫
Mã kho: 8054547
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 16V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-523 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 40Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.3mm |
| Width | 0.9mm |
| Dimensions | 1.3 x 0.9 x 0.5mm |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | 14mV/K |
| Minimum Operating Temperature | -65 °C |
| Height | 0.5mm |
