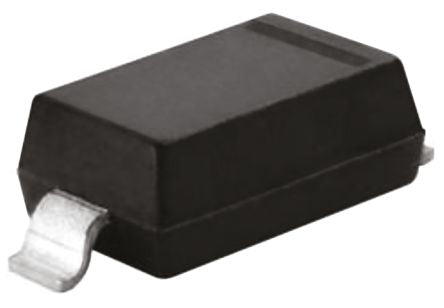

ON Semiconductor, 75V Zener Diode 5% 500 mW SMT 2-Pin SOD-123 [MMSZ5267BT1G]; 163-2534
0₫
Mã kho: 1632534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 75V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 500 mW |
Package Type | SOD-123 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 1.7mA |
Maximum Zener Impedance | 270Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 2.69mm |
Width | 1.6mm |
Dimensions | 2.69 x 1.6 x 1.12mm |
Minimum Operating Temperature | -55 °C |
Height | 1.12mm |
Maximum Operating Temperature | +150 °C |
