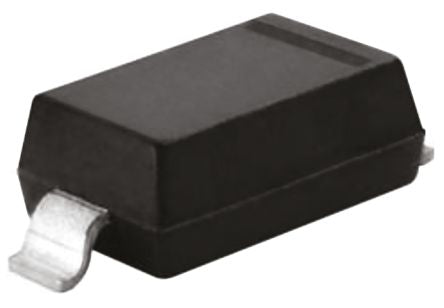

ON Semiconductor, 47V Zener Diode 5% 500 mW SMT 2-Pin SOD-123 [MMSZ47T1G]; 145-3620
0₫
Mã kho: 1453620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 47V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-123 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 2mA |
| Maximum Zener Impedance | 170Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 2.84mm |
| Width | 1.8mm |
| Dimensions | 2.84 x 1.8 x 1.25mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.25mm |
