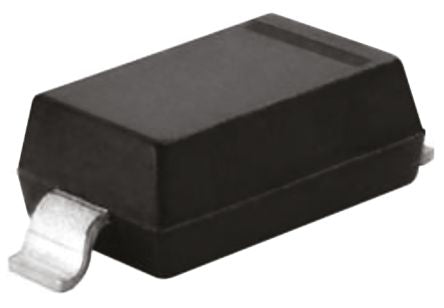

ON Semiconductor, 3.6V Zener Diode 5% 500 mW SMT 2-Pin SOD-123 [MMSZ3V6T1G]; 163-2514
0₫
Mã kho: 1632514
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 3.6V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-123 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 90Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 2.69mm |
| Width | 1.6mm |
| Dimensions | 2.69 x 1.6 x 1.12mm |
| Height | 1.12mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
