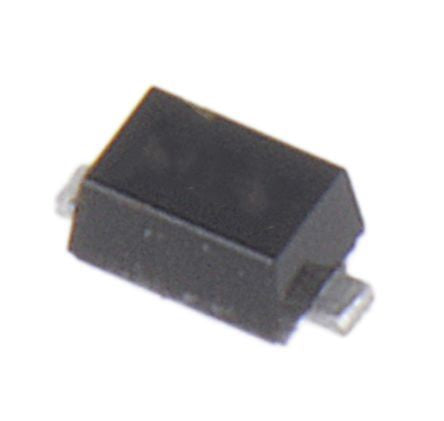

ON Semiconductor, MM5Z36VT1G [MM5Z36VT1G]; 186-9286
0₫
Mã kho: 1869286
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 34V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-523 |
| Zener Type | Voltage Regulator |
| Pin Count | 2 |
| Test Current | 2mA |
| Maximum Zener Impedance | 500Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.3mm |
| Width | 0.9mm |
| Dimensions | 1.3 x 0.9 x 0.7mm |
| Height | 0.7mm |
| Typical Voltage Temperature Coefficient | 30.4mV/K |
| Power Dissipation | 500mW |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 0.9V |
| Forward Current | 10mA |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
