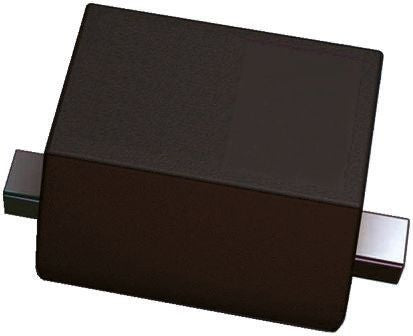

ON Semiconductor, 2.5V Zener Diode 500 mW SMT 2-Pin SOD-523 [MM5Z2V4ST1G]; 145-3317
0₫
Mã kho: 1453317
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 2.5V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 500 mW |
Package Type | SOD-523 |
Zener Type | Voltage Regulator |
Pin Count | 2 |
Test Current | 5mA |
Maximum Zener Impedance | 100Ω |
Maximum Reverse Leakage Current | 120µA |
Length | 1.3mm |
Width | 0.9mm |
Dimensions | 1.3 x 0.9 x 0.7mm |
Height | 0.7mm |
Typical Voltage Temperature Coefficient | 0mV/K |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
