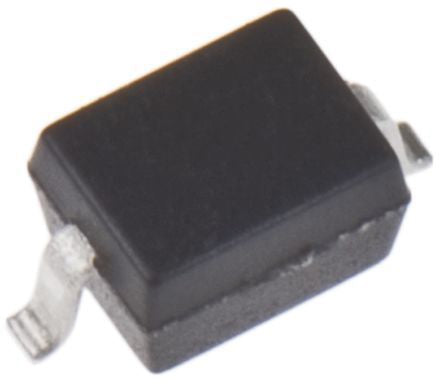

ON Semiconductor, 6.33 (Maximum)V Zener Diode ±2% 300 mW SMT 2-Pin SOD-323 [MM3Z6V2ST1G]; 184-1364
0₫
Mã kho: 1841364
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 6.33 (Maximum)V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOD-323 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 10 Ω @ 5 mA, 100 Ω @ 0.5 mA |
| Maximum Reverse Leakage Current | 3µA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 1mm |
| Power Dissipation | 300mW |
| Forward Voltage | 0.9V |
| Forward Current | 10mA |
| Minimum Operating Temperature | -65 °C |
| Automotive Standard | AEC-Q101 |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
