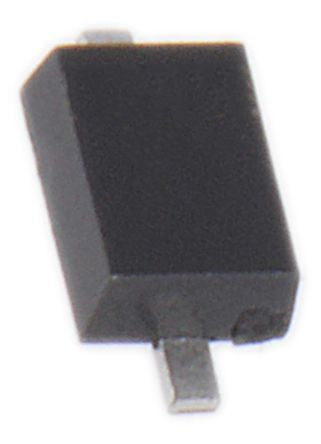

ON Semiconductor, MM3Z68VB [MM3Z68VB]; 186-8888
0₫
Mã kho: 1868888
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 68V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Package Type | SOD-323F |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 2mA |
| Maximum Zener Impedance | 447Ω |
| Maximum Reverse Leakage Current | 500nA |
| Length | 1.7mm |
| Width | 1.3mm |
| Dimensions | 1.7 x 1.3 x 1mm |
| Power Dissipation | 200mW |
| Maximum Operating Temperature | +150 °C |
| Forward Current | 10mA |
| Forward Voltage | 1V |
| Height | 1mm |
| Minimum Operating Temperature | -65 °C |
