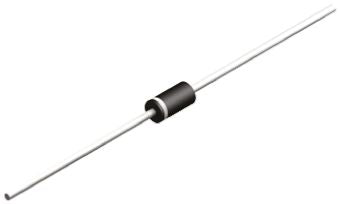

ON Semiconductor, 22V Zener Diode 5% 1 W Through Hole 2-Pin DO-41 [BZX85C22]; 166-2742
0₫
Mã kho: 1662742
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 22V |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 1 W |
| Package Type | DO-41 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 10mA |
| Maximum Zener Impedance | 25Ω |
| Maximum Reverse Leakage Current | 500nA |
| Length | 5.2mm |
| Dimensions | 2.72 (Dia.) x 5.2mm |
| Diameter | 2.72mm |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
