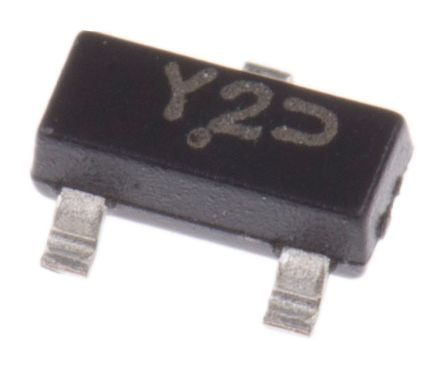

ON Semiconductor, 12V Zener Diode 5% 300 mW SMT 3-Pin SOT-23 [BZX84C12LT1G]; 145-3287
0₫
Mã kho: 1453287
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 12V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOT-23 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 3 |
| Test Current | 5mA |
| Maximum Zener Impedance | 25Ω |
| Maximum Reverse Leakage Current | 100nA |
| Length | 2.9mm |
| Width | 1.3mm |
| Dimensions | 2.9 x 1.3 x 0.94mm |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 8mV/°C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.94mm |
