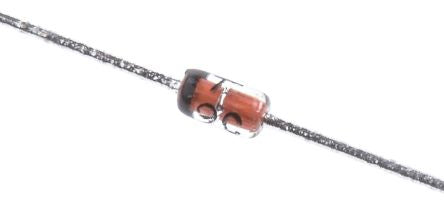

ON Semiconductor Zener Diode [BZX79C15]; 145-5395
0₫
Mã kho: 1455395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 15V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 30Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 4.56mm |
| Diameter | 1.91mm |
| Dimensions | 1.91 (Dia.) x 4.56mm |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 9.2 → 13mV/°C |
| Maximum Operating Temperature | +200 °C |
