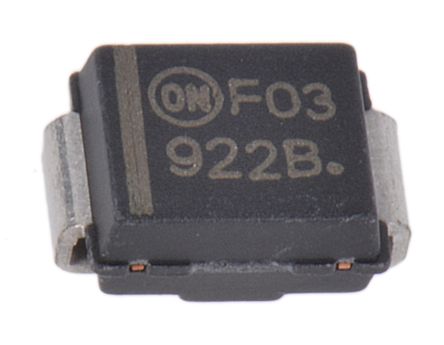

ON Semiconductor, 7.5V Zener Diode 5% 3 W SMT 2-Pin SMB [1SMB5922BT3G]; 178-7567
0₫
Mã kho: 1787567
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 7.5V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 3 W |
| Package Type | SMB |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Maximum Zener Impedance | 3 Ω, 400 Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 4.6mm |
| Width | 3.95mm |
| Dimensions | 4.6 x 3.95 x 2.28mm |
| Maximum Operating Temperature | +150 °C |
| Height | 2.28mm |
| Minimum Operating Temperature | -65 °C |
