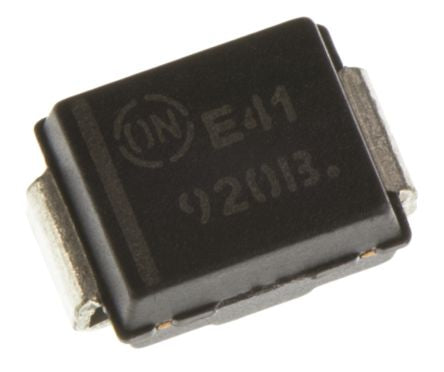

ON Semiconductor, 6.2V Zener Diode 5% 550 mW SMT 2-Pin SMB [1SMB5920BT3G]; 687-8168
0₫
Mã kho: 6878168
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 6.2V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 550 mW |
| Package Type | SMB |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 60.5mA |
| Maximum Zener Impedance | 2Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 4.32mm |
| Width | 3.56mm |
| Dimensions | 4.32 x 3.56 x 2.13mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Height | 2.13mm |
