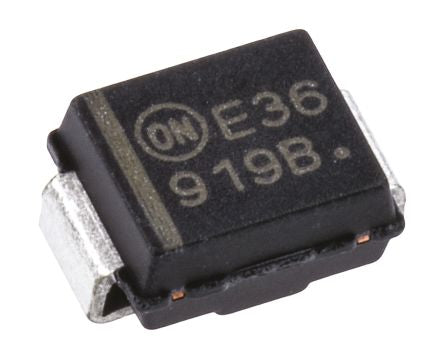

ON Semiconductor, 5.6V Zener Diode 5% 550 mW SMT 2-Pin SMB [1SMB5919BT3G]; 545-3320
0₫
Mã kho: 5453320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 5.6V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 550 mW |
Package Type | SMB |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 66.9mA |
Maximum Zener Impedance | 2Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 4.32mm |
Width | 3.56mm |
Dimensions | 4.32 x 3.56 x 2.13mm |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Height | 2.13mm |
