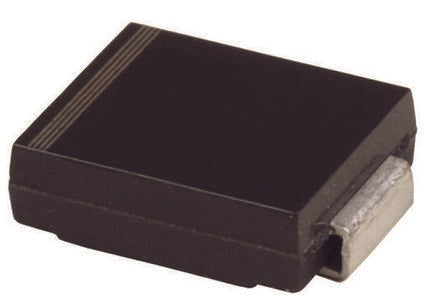

ON Semiconductor, 18V Zener Diode 5% 1.5 W SMT 2-Pin SMA [1SMA5931BT3G]; 163-2344
0₫
Mã kho: 1632344
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 18V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.5 W |
| Package Type | SMA |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 20.8mA |
| Maximum Zener Impedance | 12Ω |
| Maximum Reverse Leakage Current | 500nA |
| Length | 4.32mm |
| Width | 2.6mm |
| Dimensions | 4.32 x 2.6 x 2mm |
| Height | 2mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
