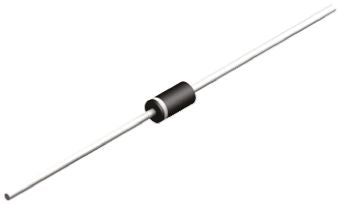

ON Semiconductor, 33V Zener Diode 5% 3 W Through Hole 2-Pin Case 59-10 [1N5937BRLG]; 145-5162
0₫
Mã kho: 1455162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 33V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 3 W |
| Package Type | Case 59-10 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 11.4mA |
| Maximum Zener Impedance | 33 Ω, 800 Ω |
| Maximum Reverse Leakage Current | 250nA |
| Dimensions | 2.7 (Dia.) x 5.2mm |
| Diameter | 2.7mm |
| Minimum Operating Temperature | -65 °C |
| Height | 5.2mm |
| Maximum Operating Temperature | +200 °C |
