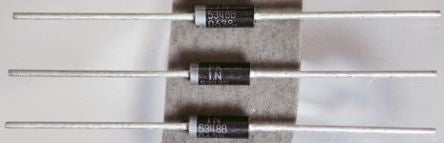

![ON Semiconductor 1N5368BG 1844888](http://nguyenxuong.com/cdn/shop/products/RJ241545-01_9dfbba8e-4f33-4fb0-aaaf-71a7e59dfddb_444x143.jpg?v=1594294158)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 47V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 5 W |
Package Type | CASE 017AA |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | ±5% |
Pin Count | 2 |
Maximum Zener Impedance | 25Ω |
Maximum Reverse Leakage Current | 500nA |
Diameter | 3.68mm |
Dimensions | 3.68 Dia. x 8.89mm |
Minimum Operating Temperature | -65 °C |
Forward Current | 1A |
Height | 8.89mm |
Forward Voltage | 1.2V |
Maximum Operating Temperature | +200 °C |
Power Dissipation | 5W |
