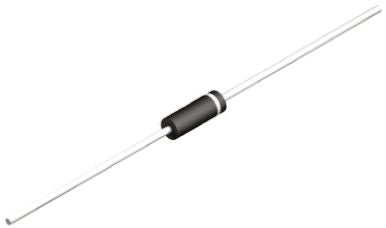

ON Semiconductor, 14V Zener Diode 5% 5 W Through Hole 2-Pin Surmetic 40 [1N5351BG]; 103-5131
0₫
Mã kho: 1035131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 14V |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 5 W |
Package Type | Surmetic 40 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 100mA |
Maximum Zener Impedance | 75Ω |
Maximum Reverse Leakage Current | 1µA |
Length | 8.89mm |
Dimensions | 3.68 (Dia.) x 8.89mm |
Diameter | 3.68mm |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +200 °C |
