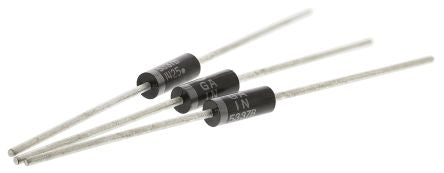

ON Semiconductor, 4.7V Zener Diode 5% 5 W Through Hole 2-Pin DO-15 [1N5337BG]; 625-6552
0₫
Mã kho: 6256552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 4.7V |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 5 W |
| Package Type | DO-15 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 260mA |
| Maximum Zener Impedance | 2Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 8.89mm |
| Width | 3.68mm |
| Dimensions | 8.89 x 3.68 x 3.68mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +200 °C |
| Height | 3.68mm |
