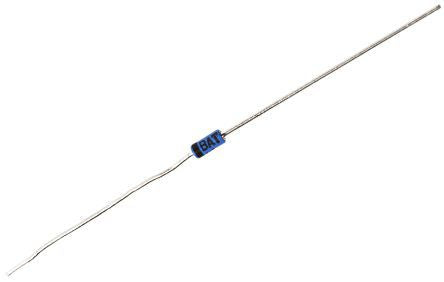

![ON Semiconductor 1N5252B 1844617](http://nguyenxuong.com/cdn/shop/products/P1844617-01_444x282.jpg?v=1594310196)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 24V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 500 mW |
Package Type | DO-35 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 5.2mA |
Maximum Zener Impedance | 33 Ω @ 5.2 mA, 600 Ω @ 0.25 mA |
Maximum Reverse Leakage Current | 100nA |
Dimensions | 1.91 Dia. x 4.56mm |
Diameter | 1.91mm |
Forward Voltage | 1.2V |
Forward Current | 200mA |
Typical Voltage Temperature Coefficient | 0.08%/°C |
Power Dissipation | 500mW |
Maximum Operating Temperature | +200 °C |
Minimum Operating Temperature | -65 °C |
Height | 4.56mm |
