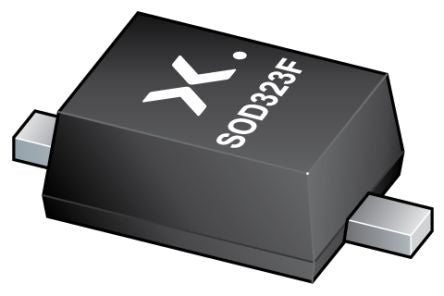

Nexperia, 6V Zener Diode 100 (Peak Reverse Power Dissipation) W, 500 (Total Power Dissipation) mW SMT 2-Pin [TDZ6V2J,115]; 152-5563
by Nexperia
0₫
Mã kho: 1525563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 6V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 100 (Peak Reverse Power Dissipation) W, 500 (Total Power Dissipation) mW |
| Package Type | SC-90, SOD-323F |
| Zener Type | General Purpose |
| Pin Count | 2 |
| Test Current | 5mA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Forward Voltage | 1.1V |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Forward Current | 250mA |
| Typical Voltage Temperature Coefficient | 3.7 (Maximum)mV/K |
| Power Dissipation | 100 (Peak Reverse Power Dissipation) W, 500 (Total Power Dissipation) mW |
| Height | 0.8mm |
| Minimum Operating Temperature | -55 °C |
