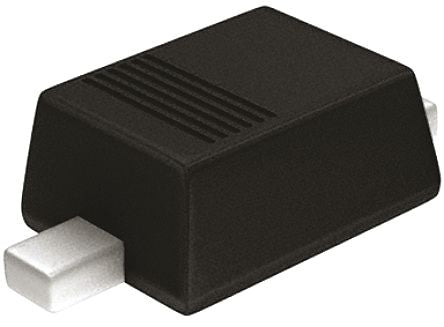

Nexperia, 13V Zener Diode 2% 500 mW SMT 2-Pin SOD-323F [TDZ13J,115]; 165-9943
by Nexperia
0₫
Mã kho: 1659943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 13V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-323F |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.02 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Minimum Operating Temperature | -55 °C |
| Typical Voltage Temperature Coefficient | 7 → 11mV/K |
| Maximum Operating Temperature | +150 °C |
| Height | 0.8mm |
