Nexperia, 36V Zener Diode ±2% 250 (Total Power Dissipation) mW, 40 (Non-Repetitive Peak Reverse Power Dissipation) W [PZU36BL,315]; 153-2858
by Nexperia
0₫
Mã kho: 1532858
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 36V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |

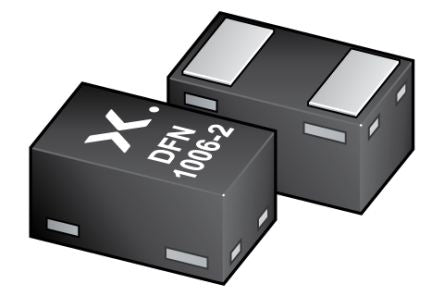

| Package Type | DFN1006, SOD-882 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.02mm |
| Width | 0.62mm |
| Dimensions | 1.02 x 0.62 x 0.5mm |
| Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Forward Current | 200mA |
| Minimum Operating Temperature | -55 °C |
| Forward Voltage | 1.1V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.5mm |
| Automotive Standard | AEC-Q101 |
