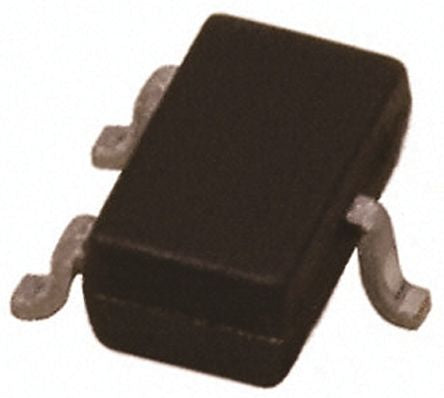

Nexperia, 5.6V Zener Diode 3.5% 250 mW SMT 3-Pin SOT-23 [PLVA656A,215]; 816-6798
by Nexperia
0₫
Mã kho: 8166798
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 5.6V |
Diode Configuration | Single |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 250 mW |
Package Type | SOT-23 |
Zener Type | Avalanche |
Zener Voltage Tolerance | 0.035 |
Pin Count | 3 |
Test Current | 0.25mA |
Maximum Reverse Leakage Current | 1µA |
Length | 3mm |
Width | 1.4mm |
Dimensions | 3 x 1.4 x 1mm |
Maximum Operating Temperature | +150 °C |
Typical Voltage Temperature Coefficient | 1.9mV/K |
Height | 1mm |
