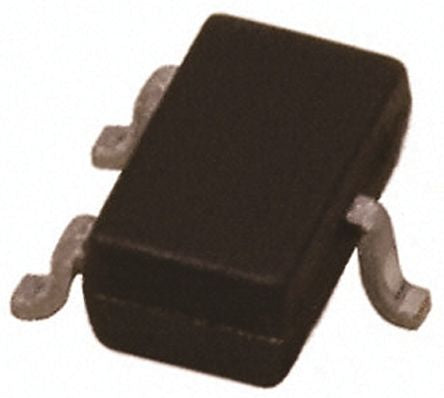

Nexperia, 5.3V Zener Diode 4% 250 mW SMT 3-Pin SOT-23 [PLVA653A,215]; 165-8780
by Nexperia
0₫
Mã kho: 1658780
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 5.3V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Package Type | SOT-23 |
| Zener Type | Avalanche |
| Zener Voltage Tolerance | 0.04 |
| Pin Count | 3 |
| Test Current | 0.25mA |
| Maximum Reverse Leakage Current | 5µA |
| Length | 3mm |
| Width | 1.4mm |
| Dimensions | 3 x 1.4 x 1mm |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | 1.6mV/K |
| Height | 1mm |
