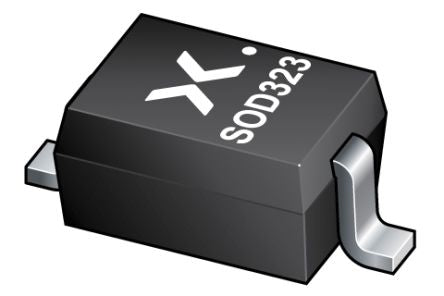

Nexperia, 30V Zener Diode ±2% 400 mW SMT 2-Pin SC-76, SOD-323 [PDZ30B,115]; 151-2645
by Nexperia
0₫
Mã kho: 1512645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 30V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 400 mW |
| Package Type | SC-76, SOD-323 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 1.05mm |
| Forward Current | 200mA |
| Typical Voltage Temperature Coefficient | 26.6mV/K |
| Power Dissipation | 400mW |
| Automotive Standard | AEC-Q101 |
| Height | 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Forward Voltage | 1.1V |
