Discrete Semiconductors > Zener Diodes

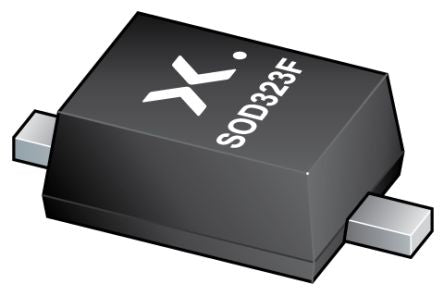

Nexperia, 27V Zener Diode ±5% 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 550 (Total Power Dissipation) mW [BZX84J-C27,135]; 153-2857

0₫
(Giá chưa VAT).
Mã kho: 1532857

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Nominal Zener Voltage 27V
Diode Configuration Single
Mounting Type Surface Mount
Number of Elements per Chip 1
Maximum Power Dissipation 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 550 (Total Power Dissipation) mW
Package Type SC-90, SOD-323F
Zener Type General Purpose
Zener Voltage Tolerance ±5%
Pin Count 2
Test Current 2mA
Maximum Reverse Leakage Current 0.05µA
Length 1.8mm
Width 1.35mm
Dimensions 1.8 x 1.35 x 0.8mm
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Forward Voltage 1.1V
Height 0.8mm
Automotive Standard AEC-Q101
Forward Current 250mA
Power Dissipation 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 550 (Total Power Dissipation) mW
