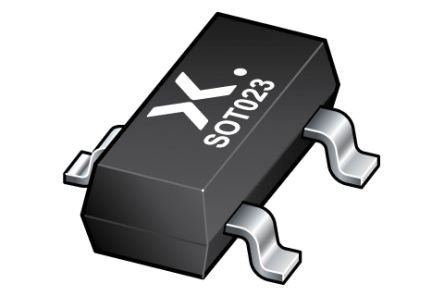

Nexperia, 3.6V Zener Diode ±2% 250 (Total Power Dissipation) mW, 40 (Peak Reverse Power Dissipation) W SMT 3-Pin [BZX84-B3V6,215]; 151-2763
by Nexperia
0₫
Mã kho: 1512763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 3.6V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Package Type | TO-236AB |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 3 |
| Test Current | 5mA |
| Length | 3mm |
| Width | 1.4mm |
| Dimensions | 3 x 1.4 x 1.1mm |
| Forward Voltage | 0.9V |
| Forward Current | 200mA |
| Height | 1.1mm |
| Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | -2.4mV/K |
| Minimum Operating Temperature | -65 °C |
