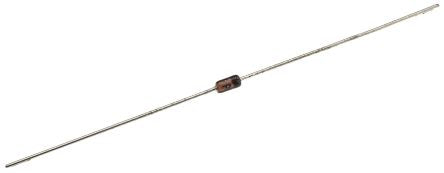

Nexperia, 3.3V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35 [BZX79-C3V3,113]; 103-7573
by Nexperia
0₫
Mã kho: 1037573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 3.3V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 95Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 4.25mm |
| Width | 1.85mm |
| Dimensions | 4.25 x 1.85 x 1.85mm |
| Maximum Operating Temperature | +200 °C |
| Height | 1.85mm |
| Typical Voltage Temperature Coefficient | -2.4mV/°C |
| Minimum Operating Temperature | -65 °C |
