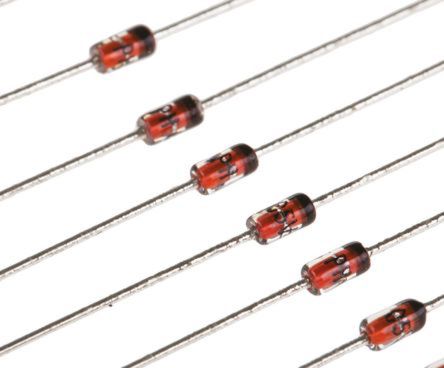

Nexperia, 3V Zener Diode ±2 %, ±5 % 500 mW Through Hole 2-Pin SOD27 (DO-35) [BZX79-C3V0,133]; 136-4799
by Nexperia
0₫
Mã kho: 1364799
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 3V |
| Diode Configuration | Single |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD27 (DO-35) |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2 %, ±5 % |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 600 Ω @ 1 mA |
| Length | 4.25mm |
| Dimensions | 1.85 (Dia.) x 4.25mm |
| Diameter | 1.85mm |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 0.9V |
| Power Dissipation | 500mW |
| Typical Voltage Temperature Coefficient | -2.1mV/K |
| Forward Current | 250mA |
| Maximum Operating Temperature | +200 °C |
