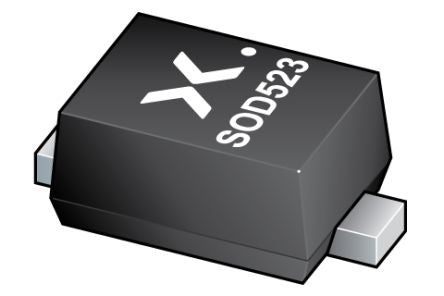

Nexperia, 36V Zener Diode ±5% 300 (Total Power Dissipation) mW, 40 (Non-Repetitive Peak Reverse Power Dissipation) W [BZX585-C36F]; 153-2868
by Nexperia
0₫
Mã kho: 1532868
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 36V |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |
Package Type | SOD-523 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | ±5% |
Pin Count | 2 |
Test Current | 2mA |
Maximum Reverse Leakage Current | 0.05µA |
Length | 1.25mm |
Width | 0.85mm |
Dimensions | 1.25 x 0.85 x .065mm |
Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |
Forward Current | 200mA |
Automotive Standard | AEC-Q101 |
Maximum Operating Temperature | +150 °C |
Height | 0.065mm |
Minimum Operating Temperature | -55 °C |
Forward Voltage | 1.1V |
