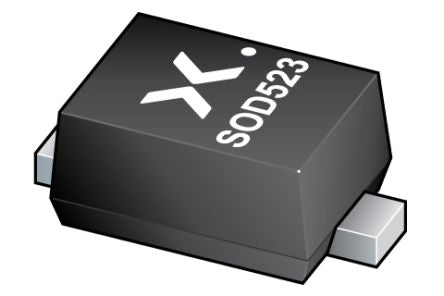

Nexperia, 9.1V Zener Diode ±2% 300 (Total Power Dissipation) mW, 40 (Non-Repetitive Peak Reverse Power Dissipation) W [BZX585-B9V1,115]; 153-2847
by Nexperia
0₫
Mã kho: 1532847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 9.1V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |
| Package Type | SOD-523 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 0.5µA |
| Length | 1.25mm |
| Width | 0.85mm |
| Dimensions | 1.25 x 0.85 x .065mm |
| Forward Voltage | 1.1V |
| Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |
| Forward Current | 200mA |
| Maximum Operating Temperature | +150 °C |
| Height | 0.065mm |
| Automotive Standard | AEC-Q101 |
| Minimum Operating Temperature | -55 °C |
