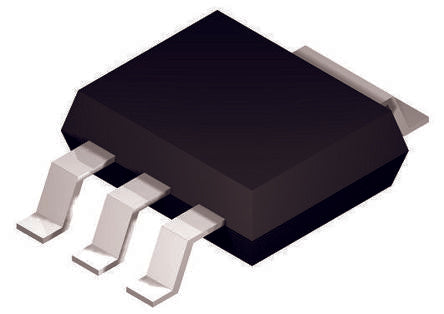

Nexperia, 8.2V Zener Diode 5% 1.5 W SMT 4-Pin SOT-223 (SC-73) [BZV90-C8V2,115]; 166-1376
by Nexperia
0₫
Mã kho: 1661376
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 8.2V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.5 W |
| Package Type | SOT-223 (SC-73) |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 4 |
| Test Current | 5mA |
| Maximum Zener Impedance | 15Ω |
| Maximum Reverse Leakage Current | 700nA |
| Length | 6.7mm |
| Width | 3.7mm |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 4.6mV/°C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.7mm |
