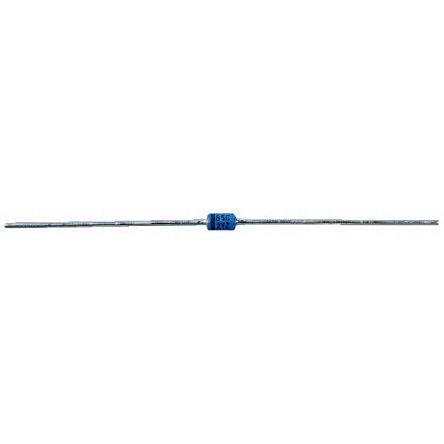

Nexperia, 33V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41 [BZV85-C33,113]; 166-1237
by Nexperia
0₫
Mã kho: 1661237
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 33V |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1.3 W |
| Package Type | DO-41 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 8mA |
| Maximum Zener Impedance | 45Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 4.8mm |
| Width | 2.6mm |
| Dimensions | 4.8 x 2.6 x 2.6mm |
| Typical Voltage Temperature Coefficient | 29.9mV/°C |
| Height | 2.6mm |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
