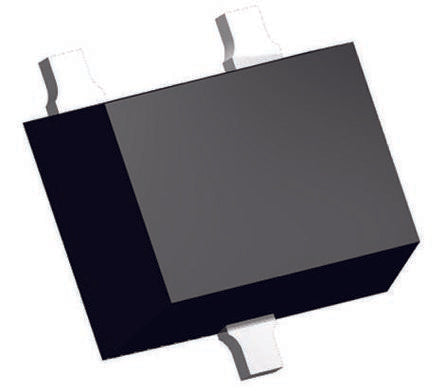

Nexperia Dual, 3.6V Zener Diode, Common Anode 5% 425 mW SMT 3-Pin SOT-663 [BZB984-C3V6,115]; 509-752
by Nexperia
0₫
Mã kho: 509752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Anode |
Nominal Zener Voltage | 3.6V |
Number of Elements per Chip | 2 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 425 mW |
Package Type | SOT-663 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 3 |
Test Current | 5mA |
Maximum Zener Impedance | 90Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 1.7mm |
Width | 1.3mm |
Dimensions | 1.7 x 1.3 x 0.6mm |
Height | 0.6mm |
Maximum Operating Temperature | +150 °C |
Typical Voltage Temperature Coefficient | -1.9mV/°C |
Minimum Operating Temperature | -65 °C |
