Nexperia Dual, 3.6V Zener Diode, Dual ±2% [BZB84-B3V6,215]; 153-2915
by Nexperia
0₫
Mã kho: 1532915
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 3.6V |
| Diode Configuration | Dual |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |

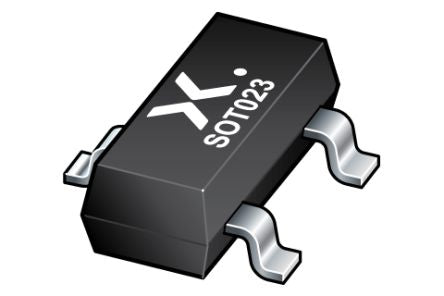

| Package Type | SOT-23, TO-236AB |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 3 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 5µA |
| Length | 3mm |
| Width | 1.4mm |
| Dimensions | 3 x 1.4 x 1mm |
| Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 300 (Total Power Dissipation) mW |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -55 °C |
| Forward Current | 200mA |
| Automotive Standard | AEC-Q101 |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
