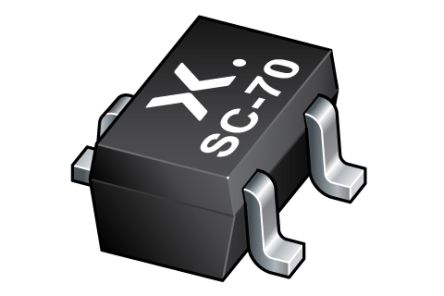

Nexperia Dual, 15V Zener Diode, Common Anode ±5% [BZB784-C15,115]; 151-3415
by Nexperia
0₫
Mã kho: 1513415
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Nominal Zener Voltage | 15V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 350 (Total Power Dissipation) mW |
| Package Type | SC-70, SOT-232 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 3 |
| Test Current | 5mA |
| Length | 2.2mm |
| Width | 1.35mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Forward Current | 200mA |
| Forward Voltage | 0.9V |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
| Height | 1mm |
| Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 350 (Total Power Dissipation) mW |
| Typical Voltage Temperature Coefficient | 10.7mV/K |
