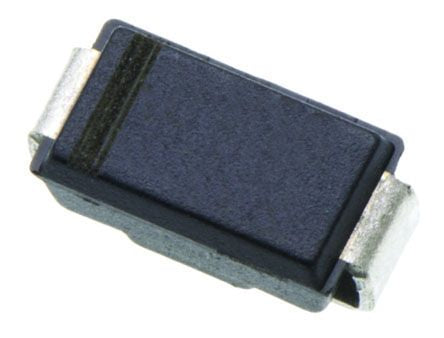

Fagor Electronica, 33V Zener Diode ±5% 3.25 W SMT 2-Pin DO-214AC [Z1SMA33 TRTB]; 123-1405
0₫
Mã kho: 1231405
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 33V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 3.25 W |
| Package Type | DO-214AC (SMA) |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 25mA |
| Maximum Zener Impedance | 15Ω |
| Maximum Reverse Leakage Current | 1µA |
| Length | 5.1mm |
| Width | 2.6mm |
| Dimensions | 5.1 x 2.6 x 2mm |
| Forward Current | 0.5A |
| Maximum Operating Temperature | +150 °C |
| Height | 2mm |
| Forward Voltage | 1V |
| Minimum Operating Temperature | -65 °C |
| Power Dissipation | 3.25W |
| Typical Voltage Temperature Coefficient | +0.085%/°C |
