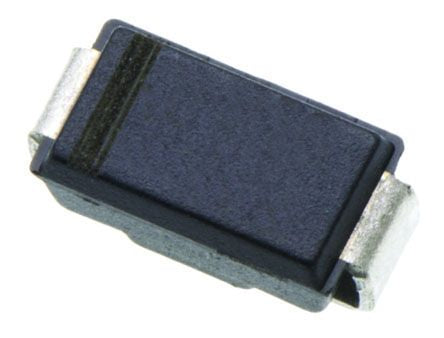

Fagor Electronica, 18V Zener Diode ±5% 3.25 W SMT 2-Pin DO-214AC [Z1SMA18 TRTB]; 123-1404
0₫
Mã kho: 1231404
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 18V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 3.25 W |
Package Type | DO-214AC (SMA) |
Zener Voltage Tolerance | ±5% |
Pin Count | 2 |
Test Current | 25mA |
Maximum Zener Impedance | 15Ω |
Maximum Reverse Leakage Current | 1µA |
Length | 5.1mm |
Width | 2.6mm |
Dimensions | 5.1 x 2.6 x 2mm |
Typical Voltage Temperature Coefficient | +0.085%/°C |
Forward Voltage | 1V |
Power Dissipation | 3.25W |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -65 °C |
Forward Current | 0.5A |
Height | 2mm |
