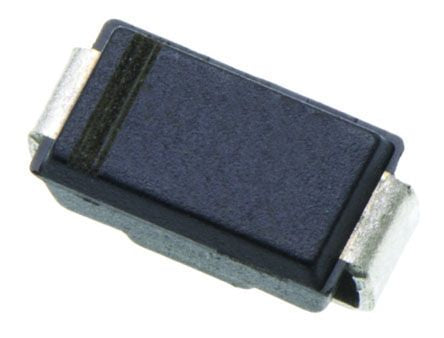

Fagor Electronica, 10V Zener Diode ±5% 3.25 W SMT 2-Pin DO-214AC [Z1SMA10 TRTB]; 123-1402
0₫
Mã kho: 1231402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 10V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 3.25 W |
| Package Type | DO-214AC (SMA) |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 50mA |
| Maximum Zener Impedance | 4Ω |
| Maximum Reverse Leakage Current | 1µA |
| Length | 5.1mm |
| Width | 2.6mm |
| Dimensions | 5.1 x 2.6 x 2mm |
| Typical Voltage Temperature Coefficient | +0.07%/°C |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 1V |
| Power Dissipation | 3.25W |
| Height | 2mm |
| Forward Current | 0.5A |
