![DiodesZetex DFLZ6V8-7 8222491](http://nguyenxuong.com/cdn/shop/products/R8222491-01_9c73581d-ca23-4d2e-b83b-3b4109a28037_444x362.jpg?v=1594208936)

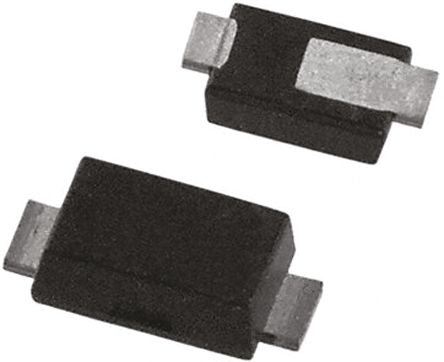

Diodes Inc, 6.8V Zener Diode 5% 1 W SMT 2-Pin POWERDI123 [DFLZ6V8-7]; 822-2491
by DiodesZetex
0₫
Mã kho: 8222491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 6.8V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 1 W |
Package Type | POWERDI123 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 100mA |
Maximum Zener Impedance | 3Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 3mm |
Width | 1.93mm |
Dimensions | 3 x 1.93 x 1mm |
Typical Voltage Temperature Coefficient | 0 → 0.07%/°C |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Height | 1mm |
