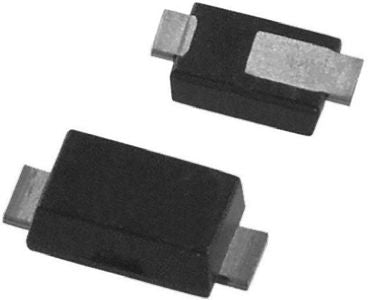

Diodes Inc, 10V Zener Diode 5% 1 W SMT 2-Pin PowerDI 123 [DFLZ10-7]; 122-0192
by DiodesZetex
0₫
Mã kho: 1220192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 10V |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 1 W |
Package Type | PowerDI 123 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 50mA |
Maximum Zener Impedance | 4Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 3mm |
Width | 1.93mm |
Dimensions | 3 x 1.93 x 1mm |
Height | 1mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Typical Voltage Temperature Coefficient | 0.07%/°C |
