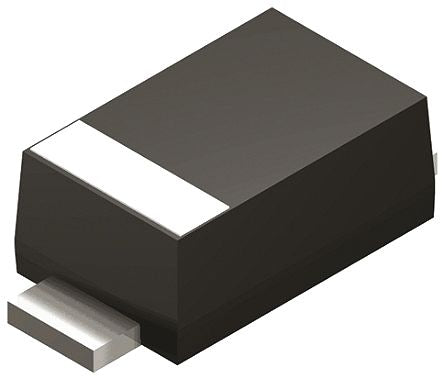

Diodes Inc, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123 [DDZ9702-7]; 822-2425
by DiodesZetex
0₫
Mã kho: 8222425
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 15V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 500 mW |
Package Type | SOD-123 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 0.05mA |
Maximum Reverse Leakage Current | 50nA |
Length | 2.85mm |
Width | 1.7mm |
Dimensions | 2.85 x 1.7 x 1.35mm |
Height | 1.35mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -65 °C |
