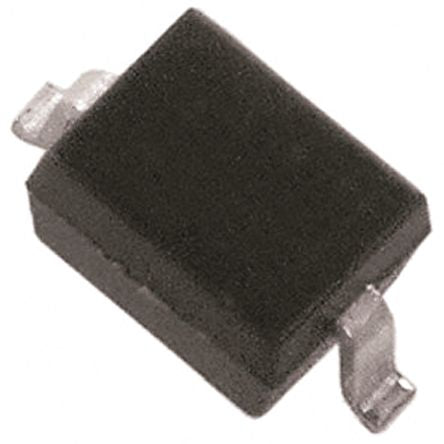

Diodes Inc, 12V Zener Diode 5% 200 mW SMT 2-Pin SOD-323 [DDZ9699S-7]; 165-8837
by DiodesZetex
0₫
Mã kho: 1658837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 12V |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 200 mW |
Package Type | SOD-323 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 0.05mA |
Maximum Reverse Leakage Current | 50nA |
Length | 1.8mm |
Width | 1.4mm |
Dimensions | 1.8 x 1.4 x 1.1mm |
Minimum Operating Temperature | -65 °C |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
