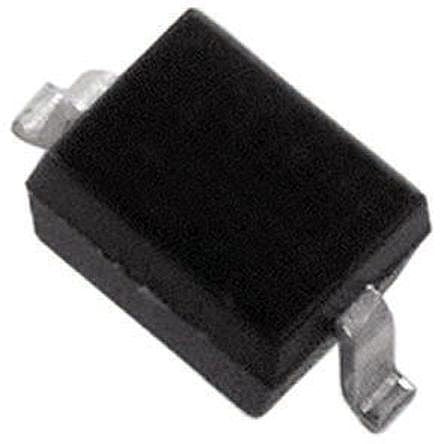

Diodes Inc, 5.6V Zener Diode 3% 200 mW SMT 2-Pin SOD-323 [DDZ5V6BS-7]; 885-5463
by DiodesZetex
0₫
Mã kho: 8855463
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 5.6V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Package Type | SOD-323 |
| Zener Type | Precision |
| Zener Voltage Tolerance | 0.03 |
| Pin Count | 2 |
| Test Current | 20mA |
| Maximum Zener Impedance | 400Ω |
| Maximum Reverse Leakage Current | 500nA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 1.1mm |
| Maximum Operating Temperature | +150 °C |
| Forward Voltage | 0.9V |
| Height | 1.1mm |
| Minimum Operating Temperature | -65 °C |
| Power Dissipation | 200mW |
| Forward Current | 10mA |
